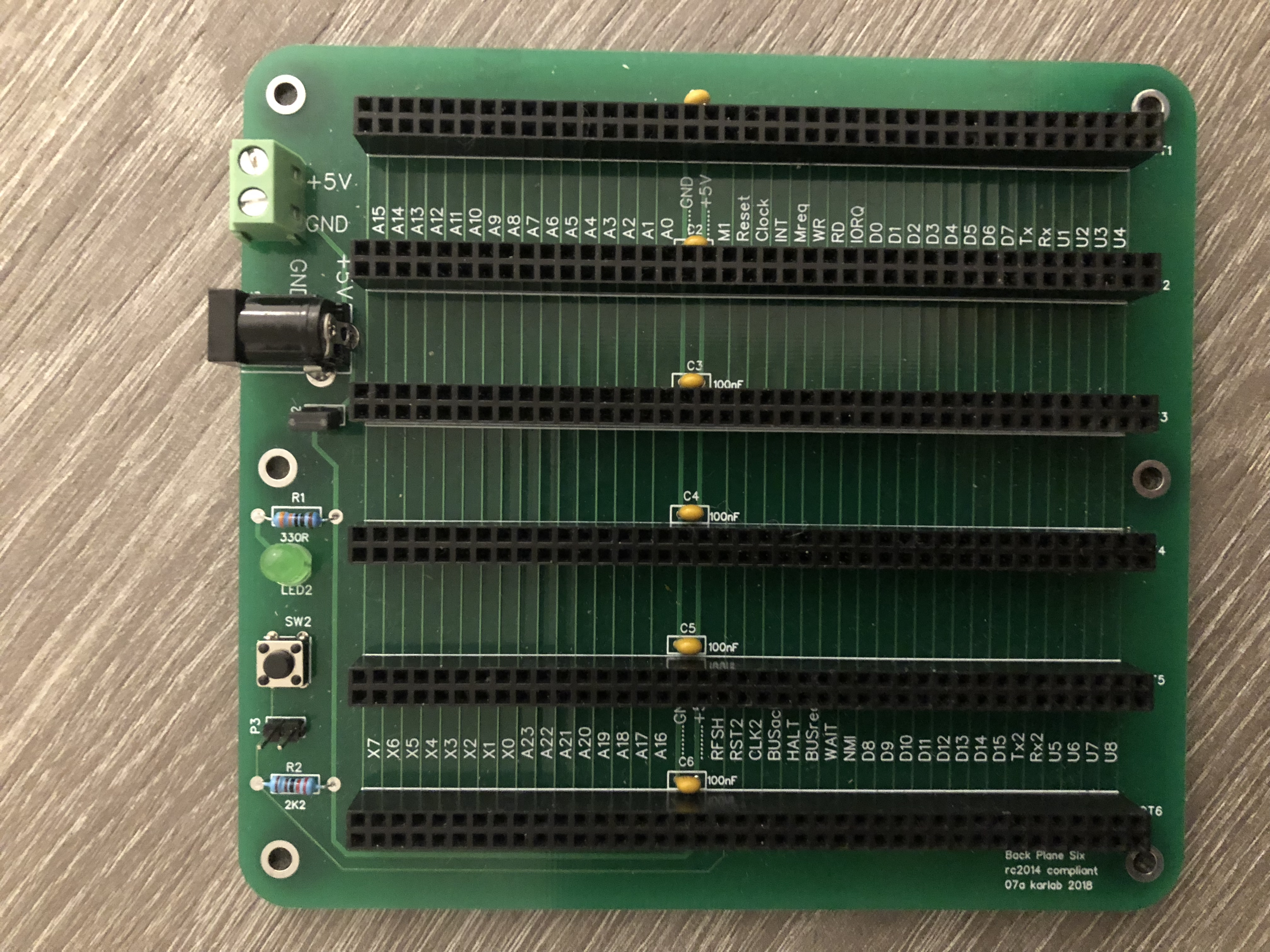

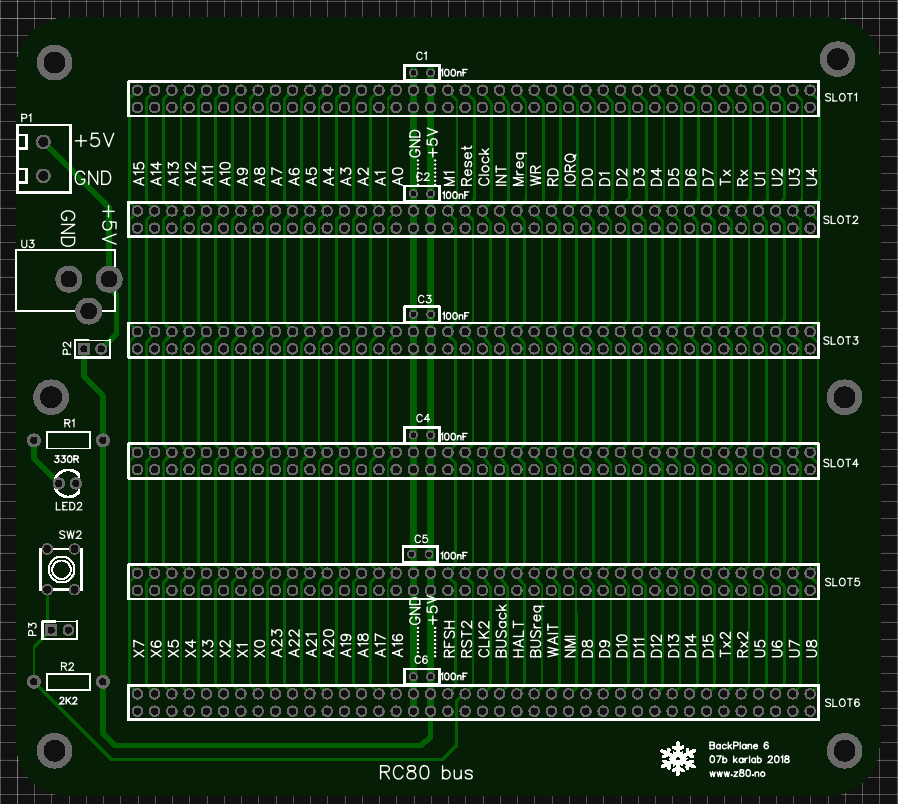

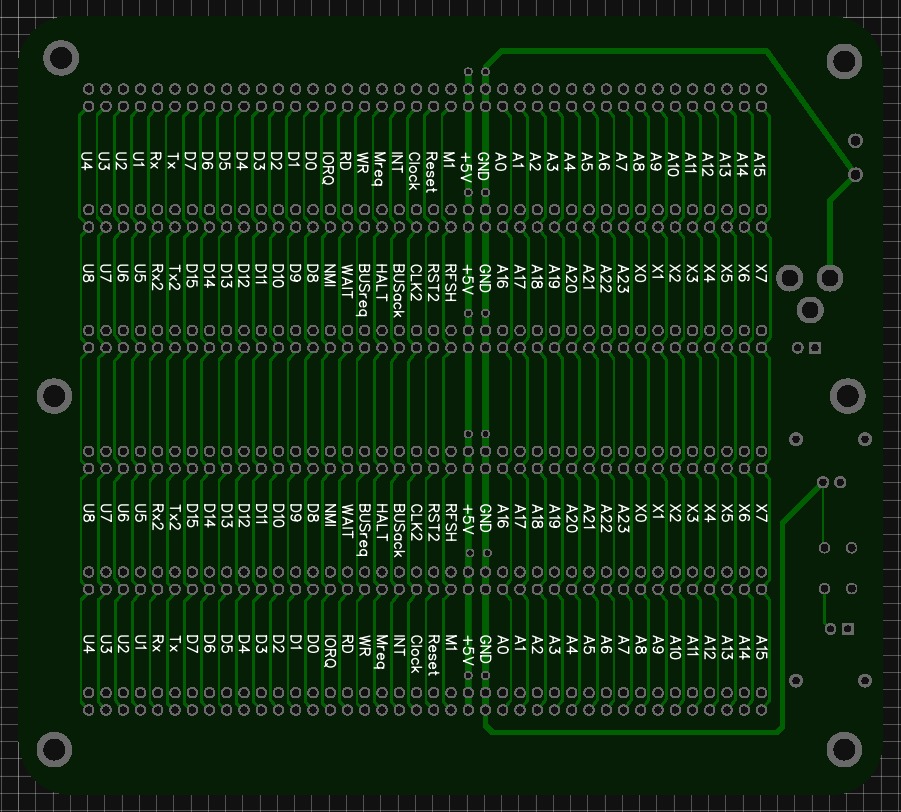

#07 BackPlane Six
Description
6 slots
2 x 40 pin bus header (alt. 1 x 40)
Power supply connector (optional)
Reset circuit (optional)
Scematic
Gerber File
EasyEDA
