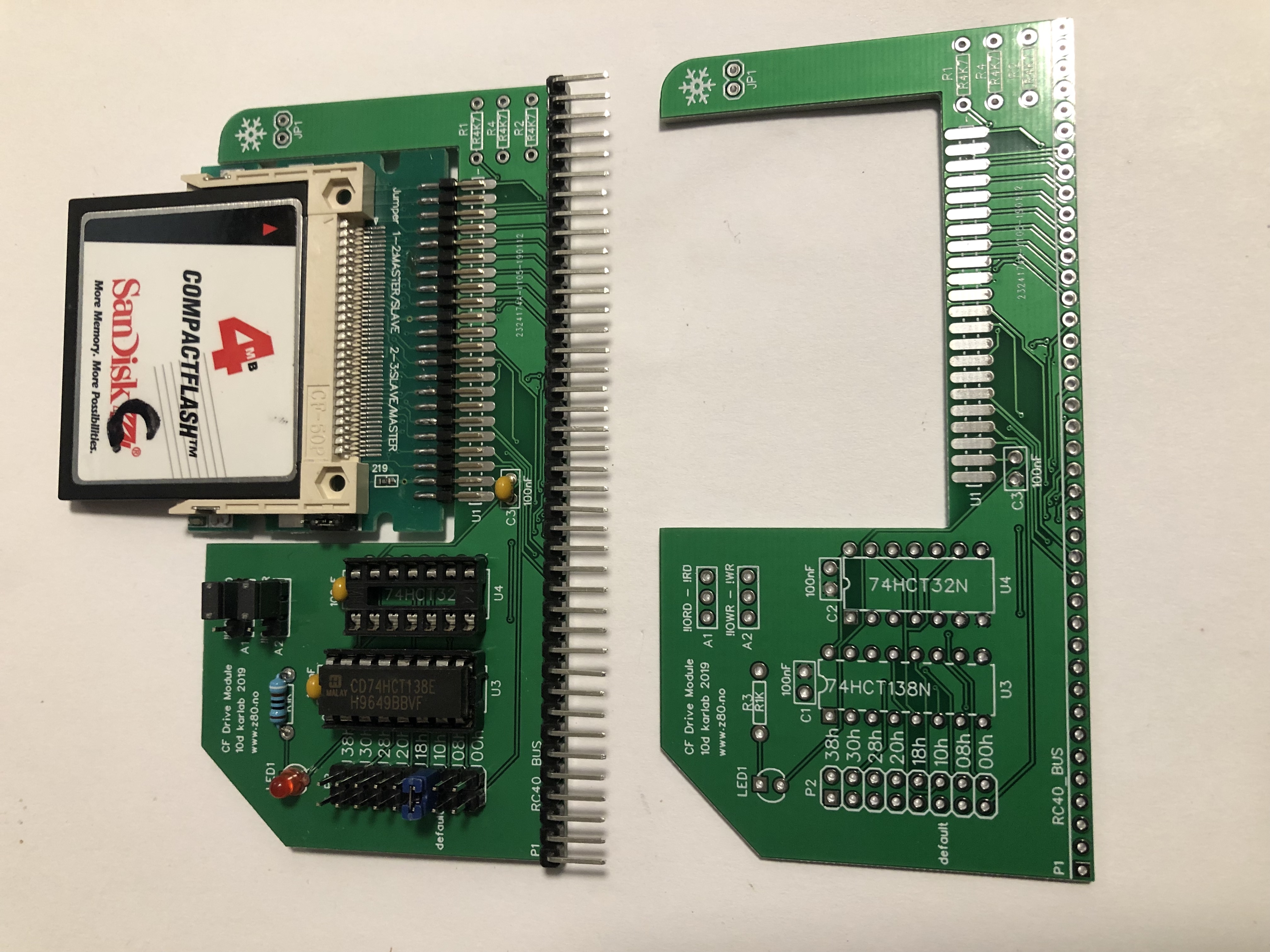

#10d Compact Flash Adaptor


Compact Flash Module. Enables the use of very inexpensive compact flash adaptors. Compatible with most kits.

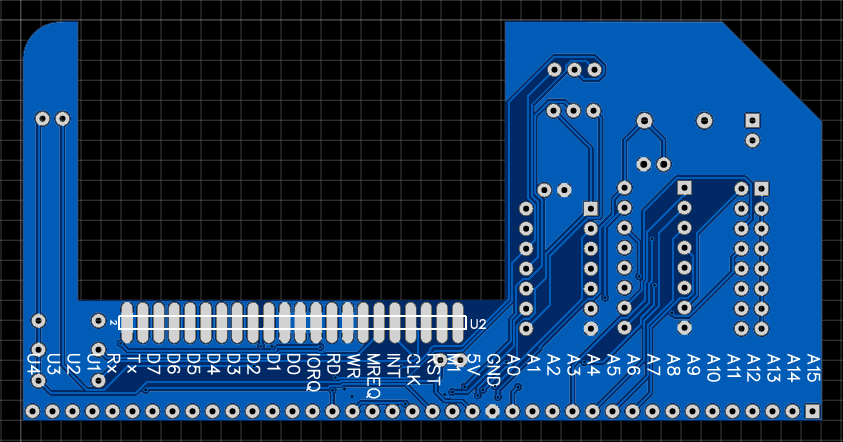

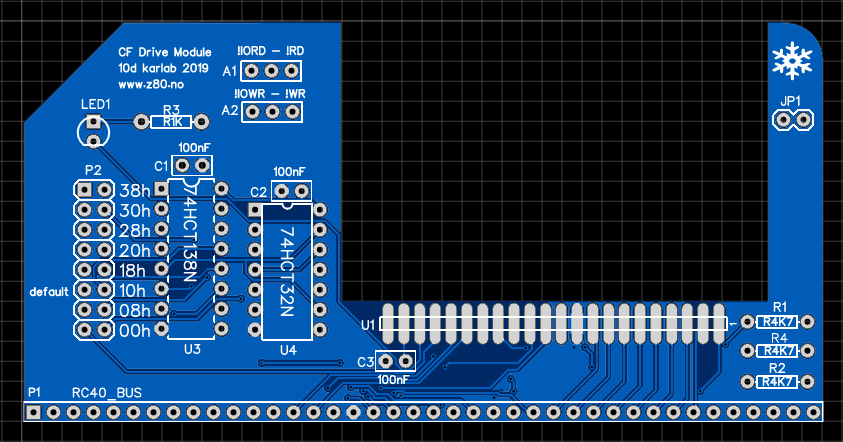

#10d PCB
74HCT32N (not essential)
3x 4,7k Ohms resistors (value not critical)
1x 1k Ohm resistor (value not critical, 330 - 2k)
3x 100nF capacitor
1x LED
1x 40 angled male pin connector (RC40 bus)
2x 10 male pin connector
2x 3 male pin connector
1x 2 male pin connector (not essential)
1x DIP-16 socket
1x DIP-14 socket (not essential)
CF adaptor card
