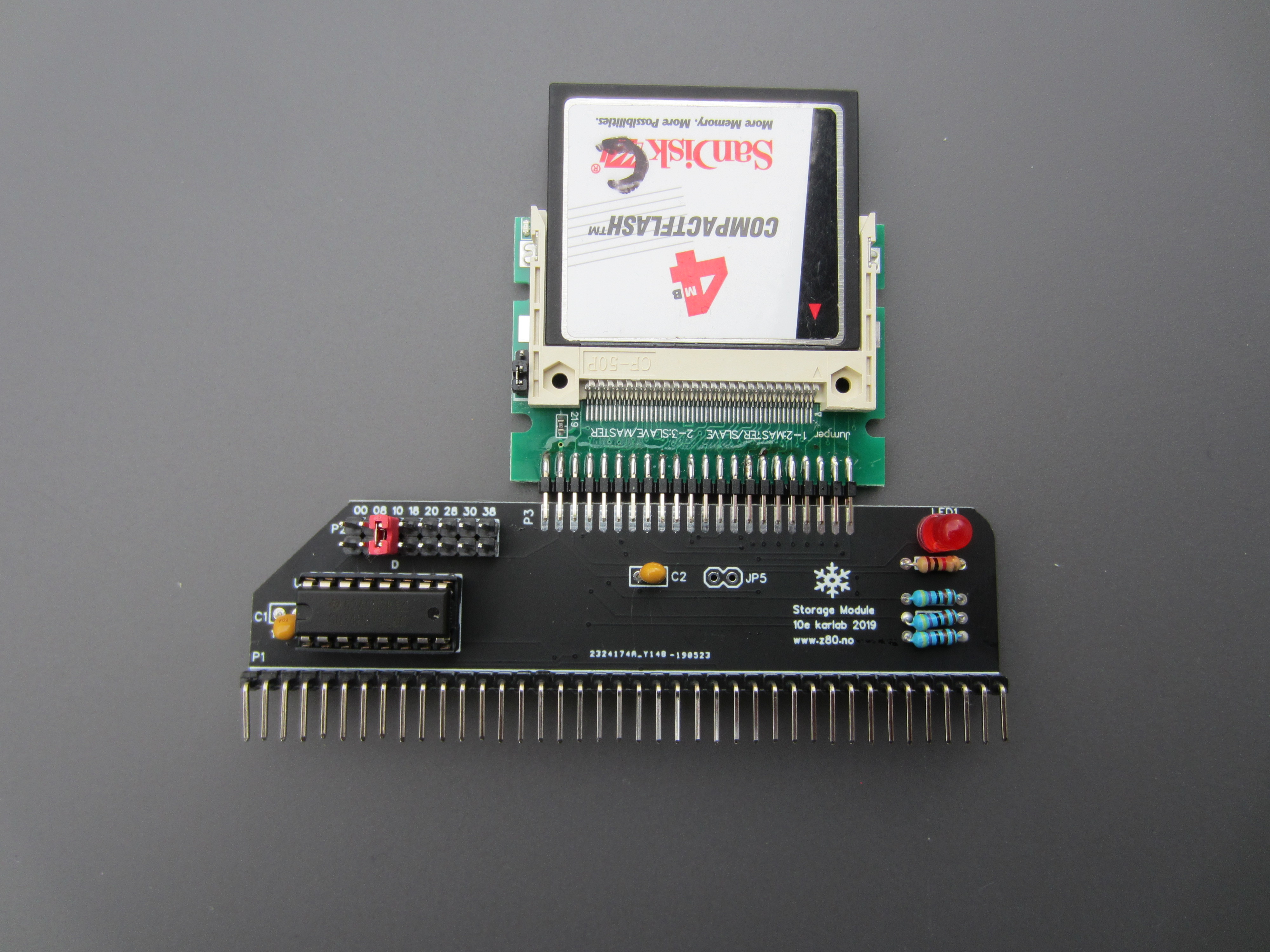

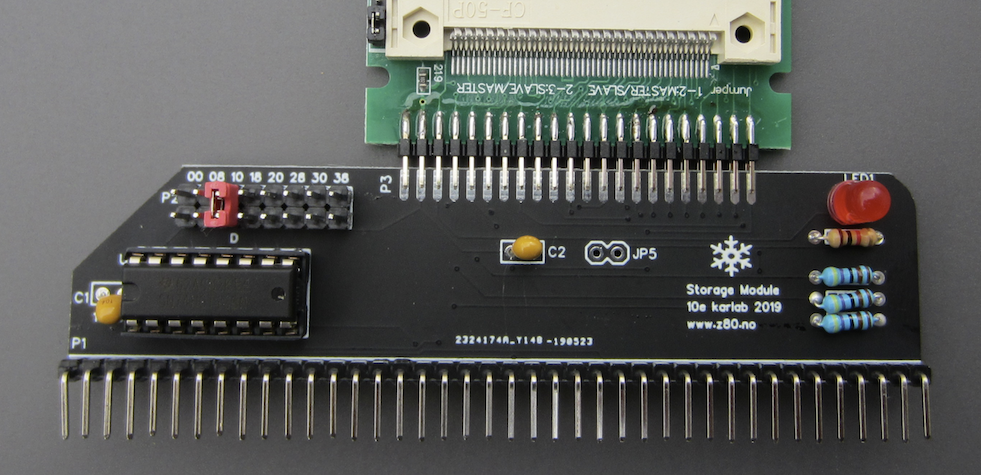

#10e Compact Flash Adaptor


Compact Flash Module. Enables the use of very inexpensive compact flash adaptors. Compatible with most kits.

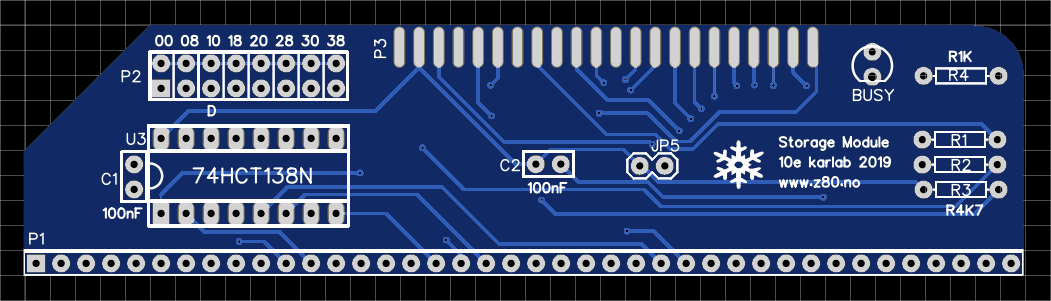

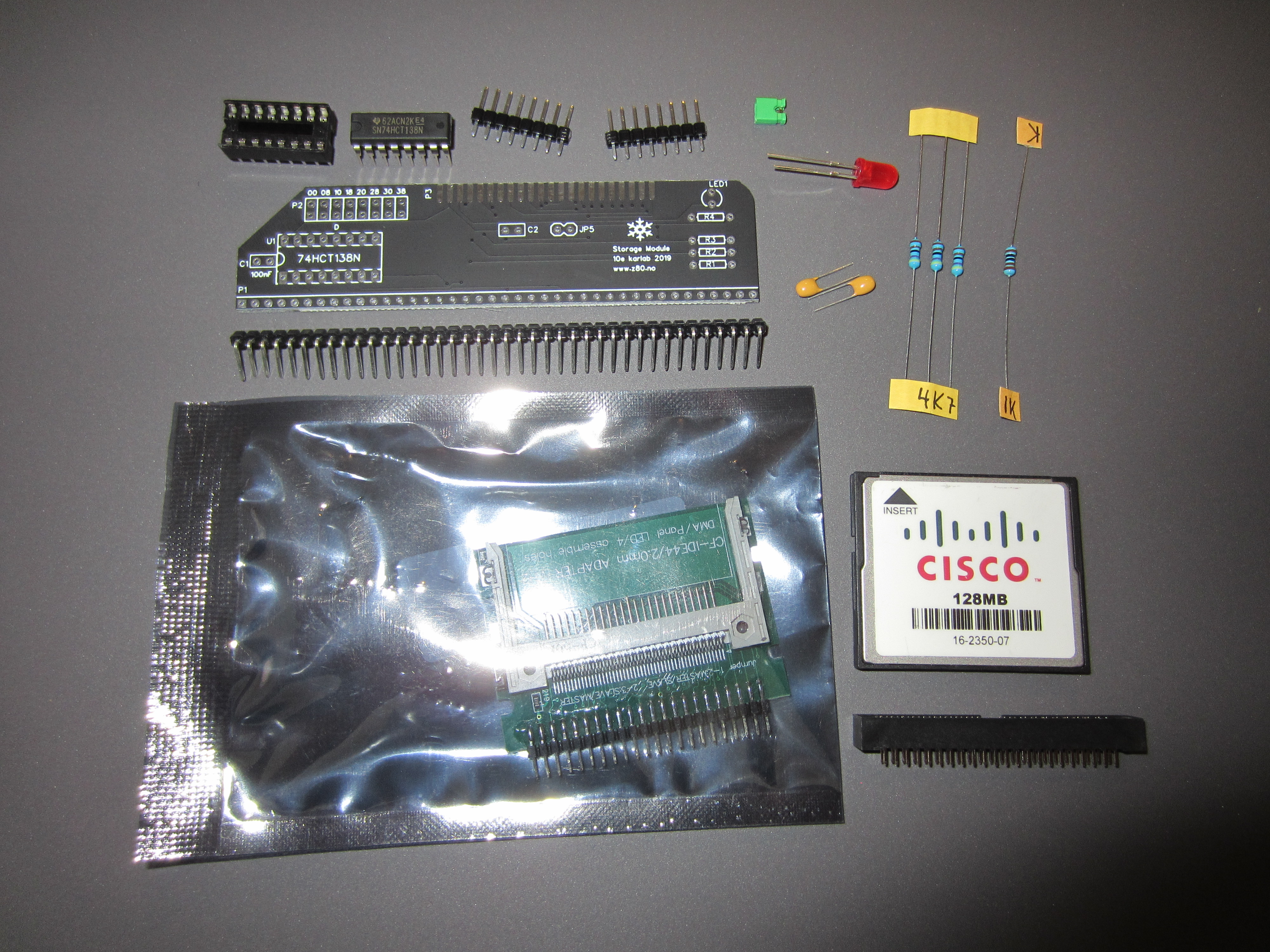

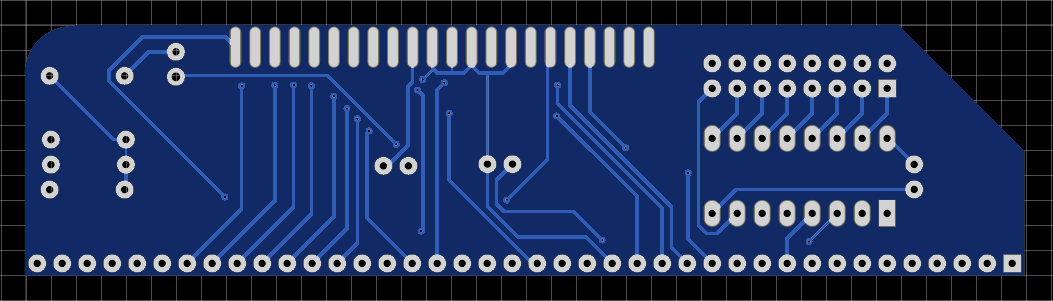

#10e PCB
1x DIP-16 socket
3x 4,7k Ohms resistors (value not critical)
1x 1k Ohm resistor (value not critical, 330 - 2k)
2x 100nF capacitor
1x LED
1x 40 angled male pin connector (RC40 bus)
2x 8 male pin connector
1x 2 male pin connector (not essential)
1x jumper

CF adaptor
CF memory card
