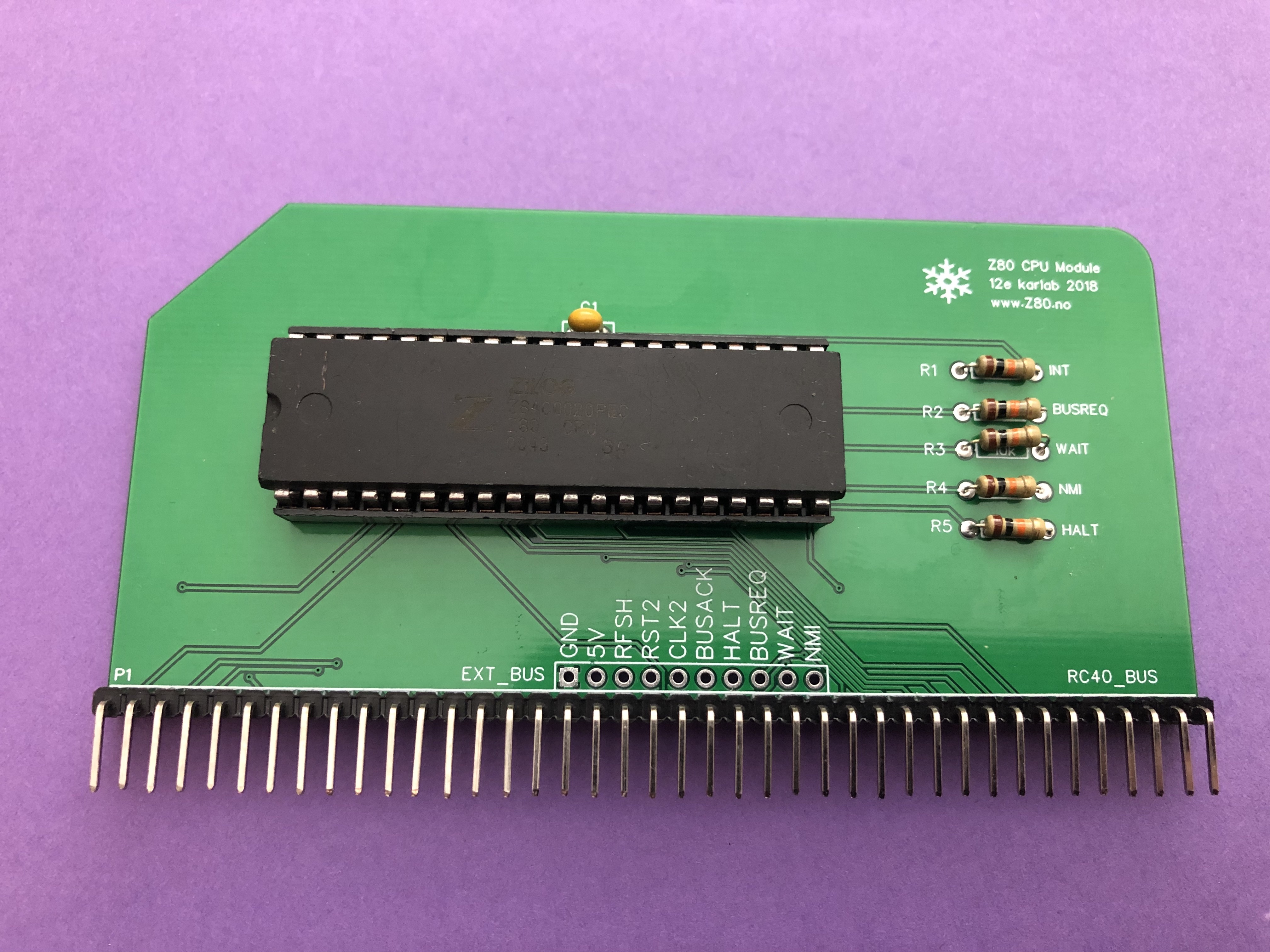

#12e Z80 CPU Module


Description

  • Z80 CPU
  • 51 x 102 mm
  • 40 + 10 pin bus connector

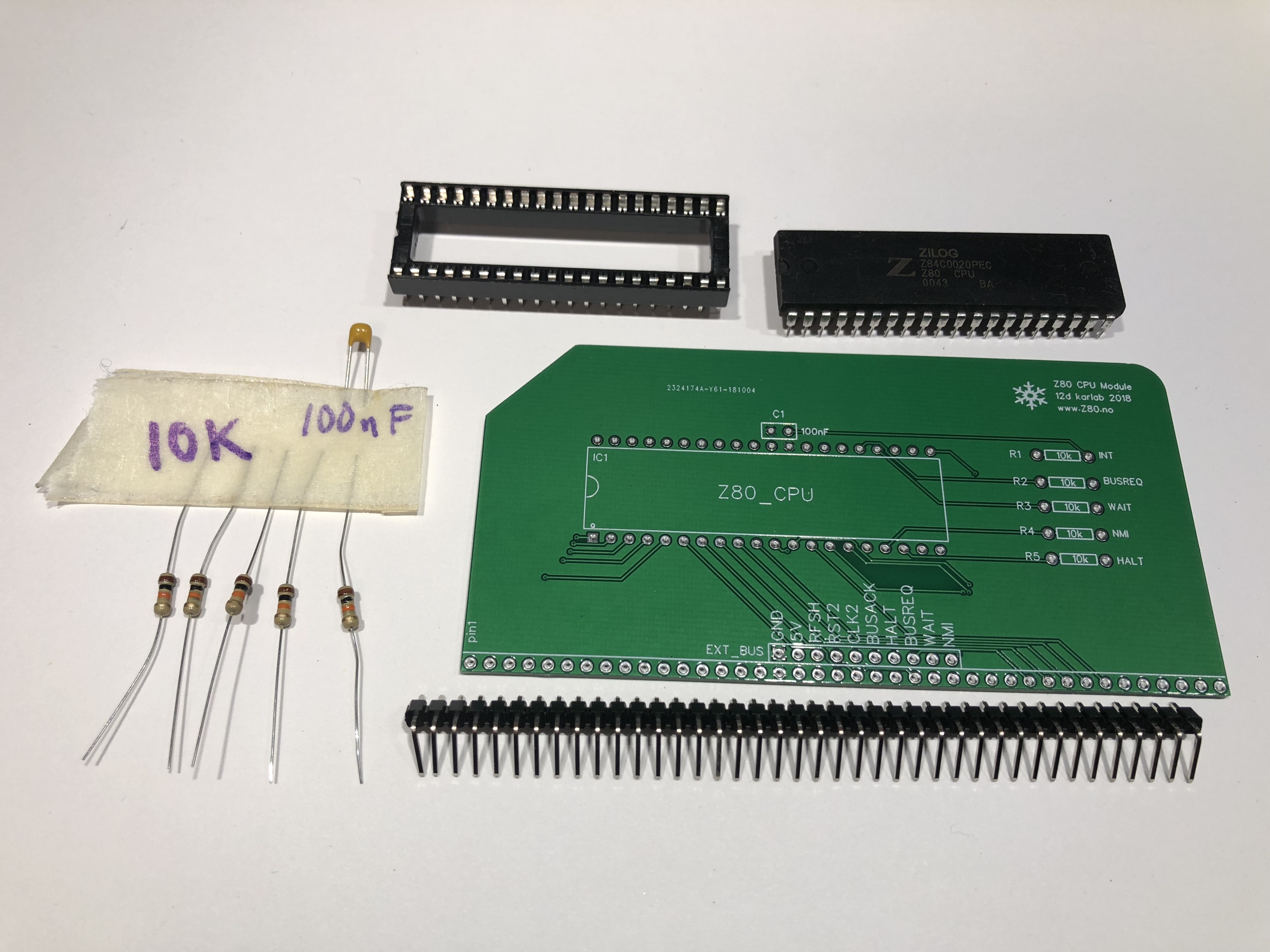

Components

  • PCB - 12e
  • DIP-40 socket
  • Z80 CPU, Z84C0020PEC 20Mhz
  • 40pin angled male connector
  • Resistor 10K (5x)
  • Capacitor 100nF
