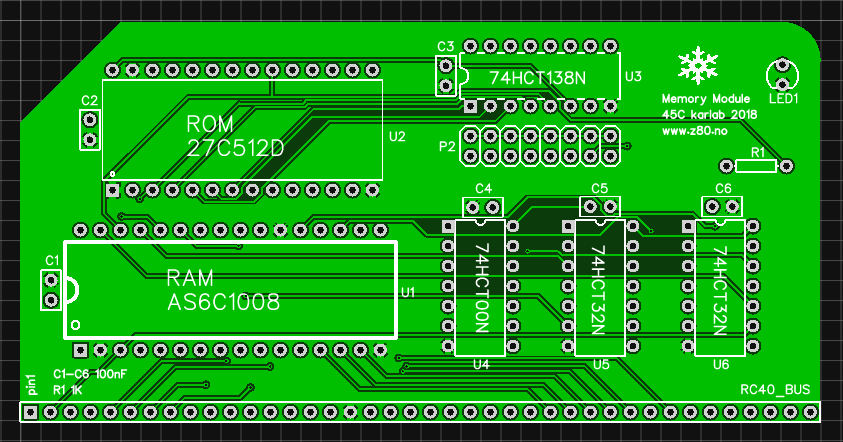

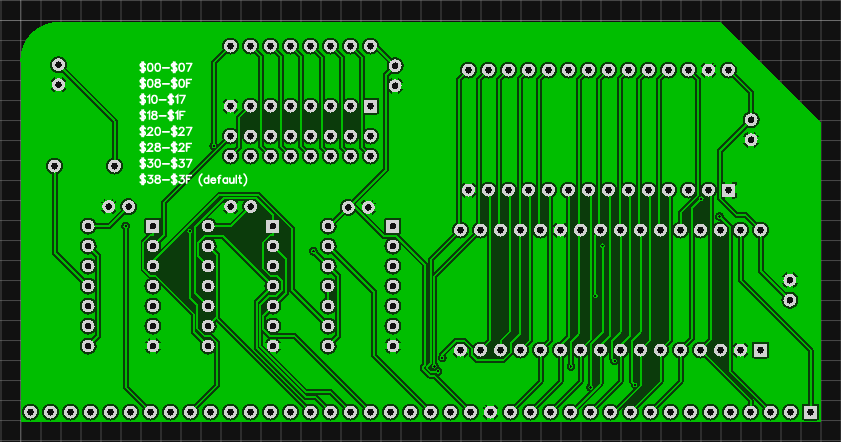

#45c Memory Module (RAM + ROM)
Description
- RAM 64kb (128kb)
- ROM 2 banks x 32kb (64kb)
- 51 x 102 mm
- RC40 bus connector
Components
- PCB - 45c
- DIP-32 socket
- DIP-28 socket
- DIP16 socket
- DIP-14 socket (3x)
- RAM 26256 (32kb)
- RAM AS6C1008 (128kb)
- ROM 27C512 (64kb)
- 74HCT138
- 74HCT32 (2x)
- 74HCT00
- 100nF capacitors (6x)
- 1k resistor
- 1 led
- pins and jumpers
- 1x40 pin angled male connector
Recommended boot loader is Small Computer Monitor.
SCMon R2 (16kb)
SCMon R3 (32kb)
The SCMonitor is copyright Steve Cousins. A detailed user manual can be found here. Small Computer Central
