#67c Z80 KIO module (EXPERIMENTAL)

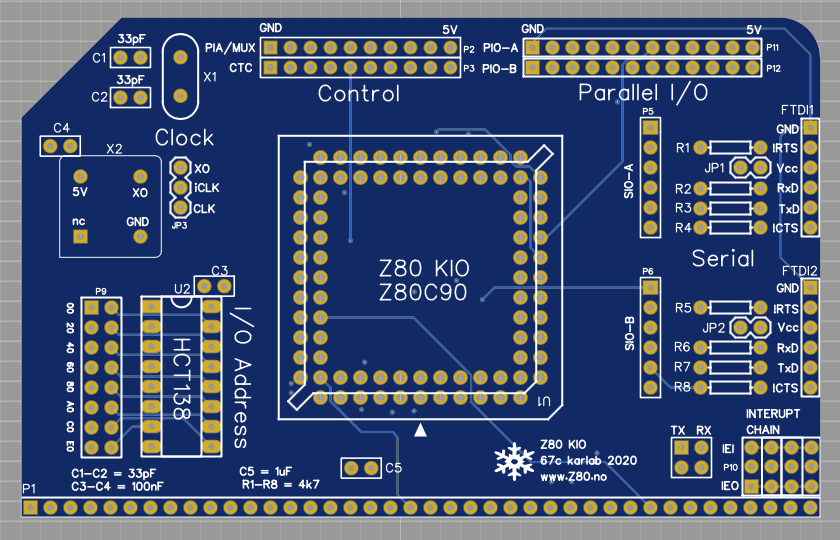

(the picture above shows #67a)


  • Experimental module for the Z80 KIO, super-integration chip.
  • Providing 2 serial ports, 2 (3) parallel ports, DMA and CTC.
  • With option for two clocks onboard.

  • PCB - 67c
  • Z80 KIO = Z80C9010
  • PLCC-84 socket
  • 74HCT138
  • DIP-16 socket
  • Crystal Oscillator (X2)
  • Crystal (X1)

  • Various pins, headers and jumpers
  • 8x R2k2
  • 3x Capacitors 100nF (104)

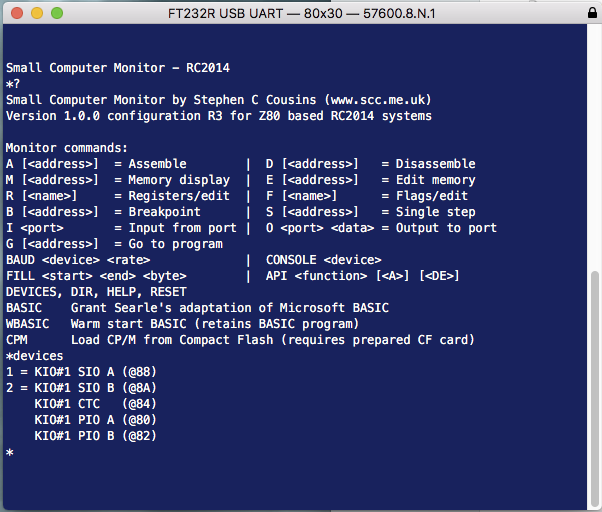

My Image

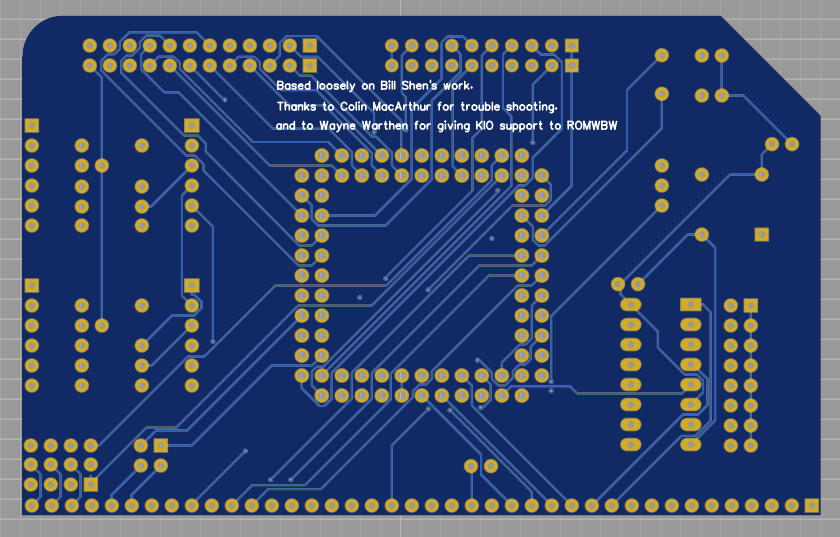

My Image

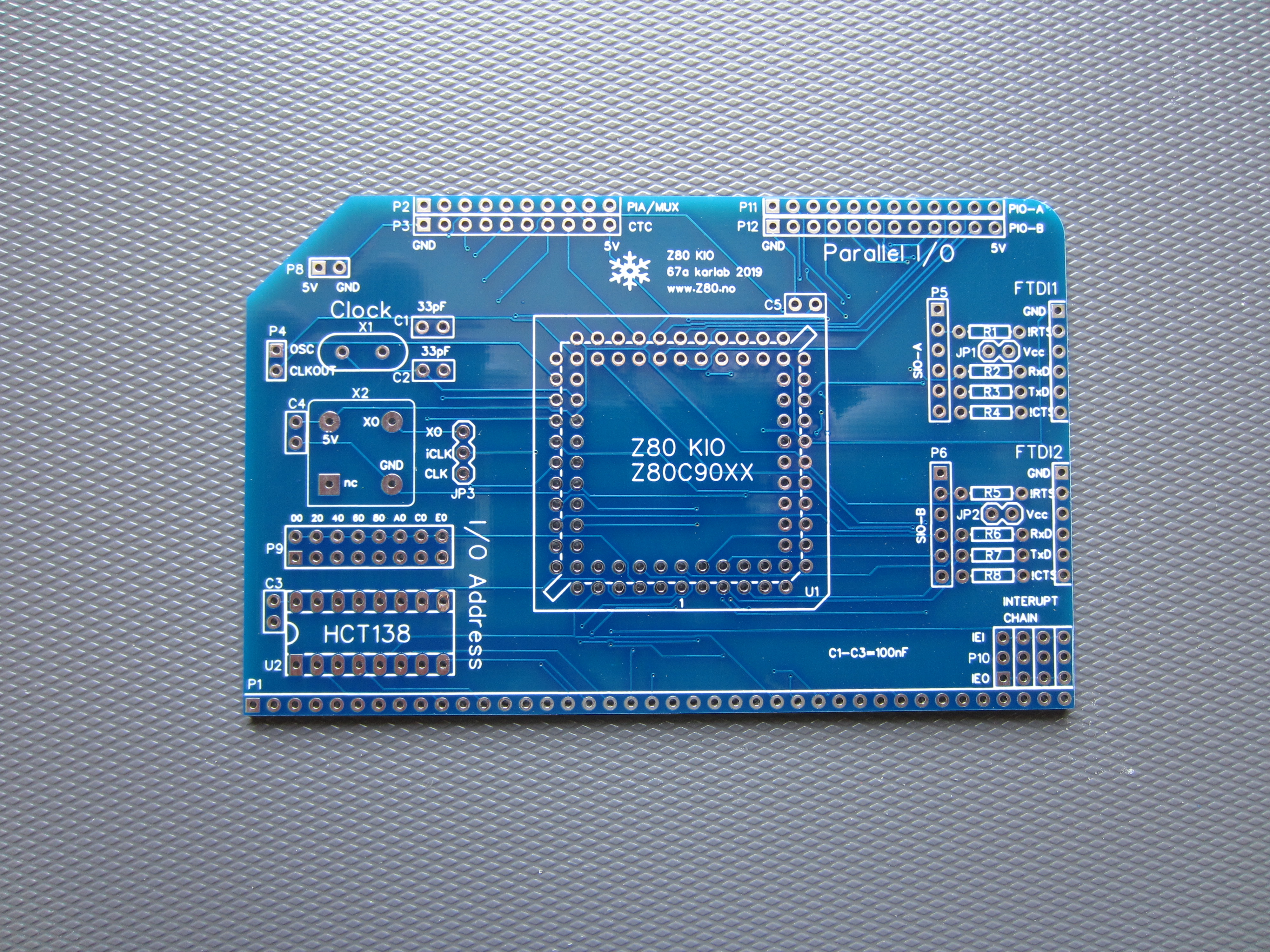

My Image
My Image

This module has only been partly tested and may not work in every setup.
It is intended as an experimental board for exploring the KIO chip.
The module is a bit higher than normal RC2014 modules due to the size of the chip.
