#68b 1MB Linear Memory Module
Description
- 512kb ROM
- 512kb RAM
- 51 x 102 mm
- RC80 bus connector

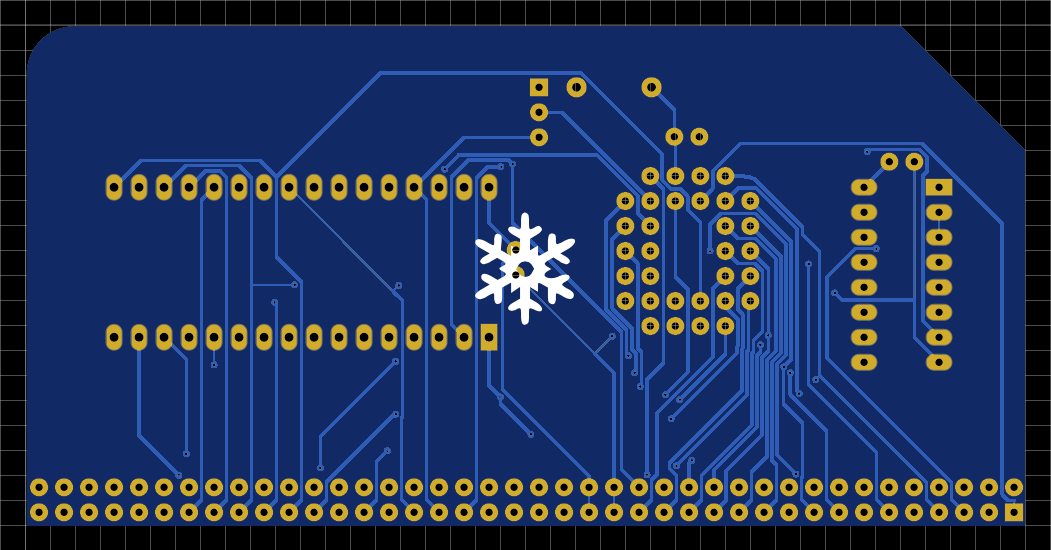

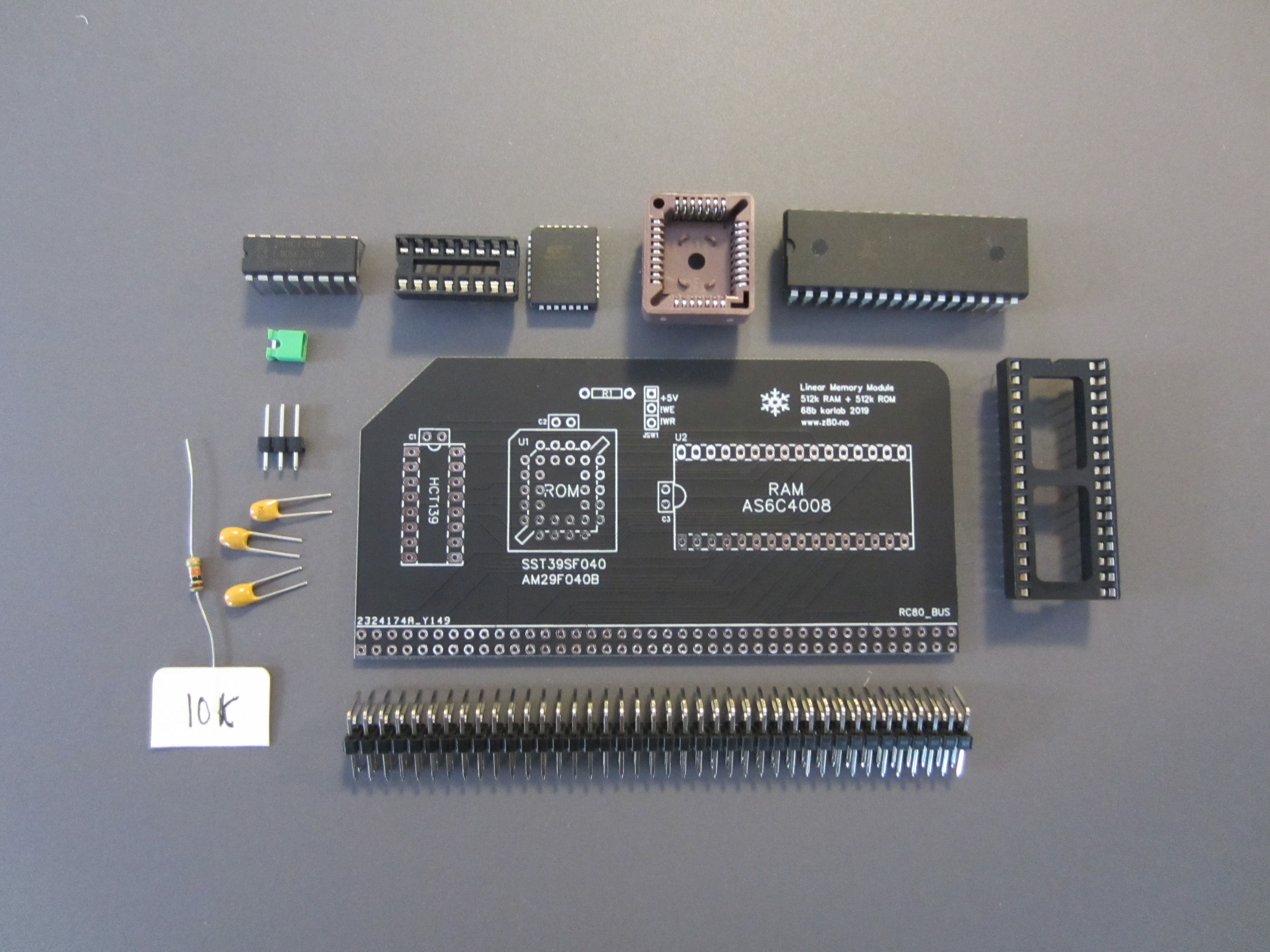

Components

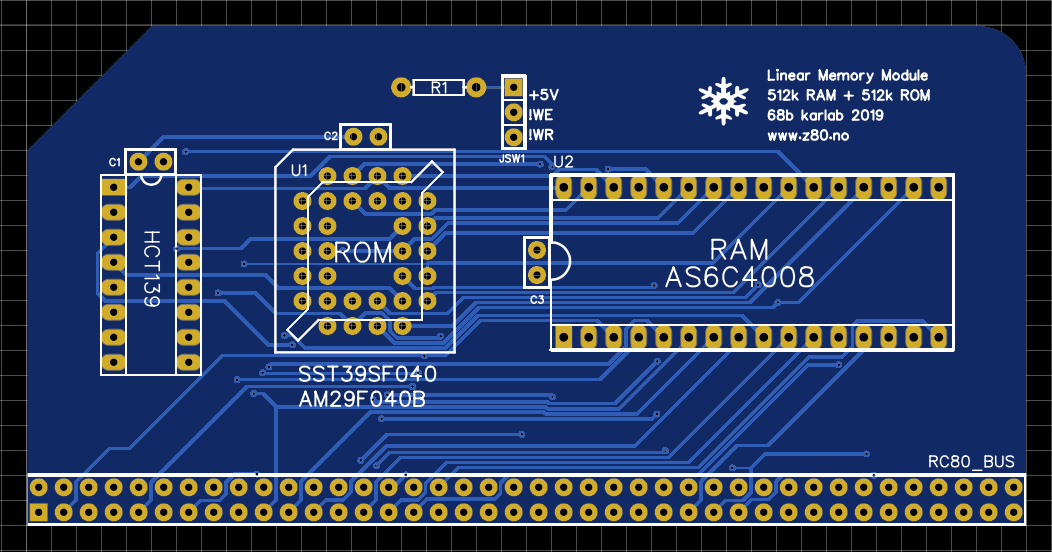

- PCB-68b
- ROM 512kb PLCC-32
- (SST39SF040/AM29F040B)
- RAM 512kb DIP-32
- (AS6C4008/KM684000BLP)
- 74HCT139
- PLCC-32 socket
- DIP-32 socket
- DIP16 socket
- 100nF capacitors (3x)
- 10k resistor
- pins and jumpers
- 2x40 pin angled male connector
This module is intended for Z180 module or any other CPU with linear addressing up to 1 MB.

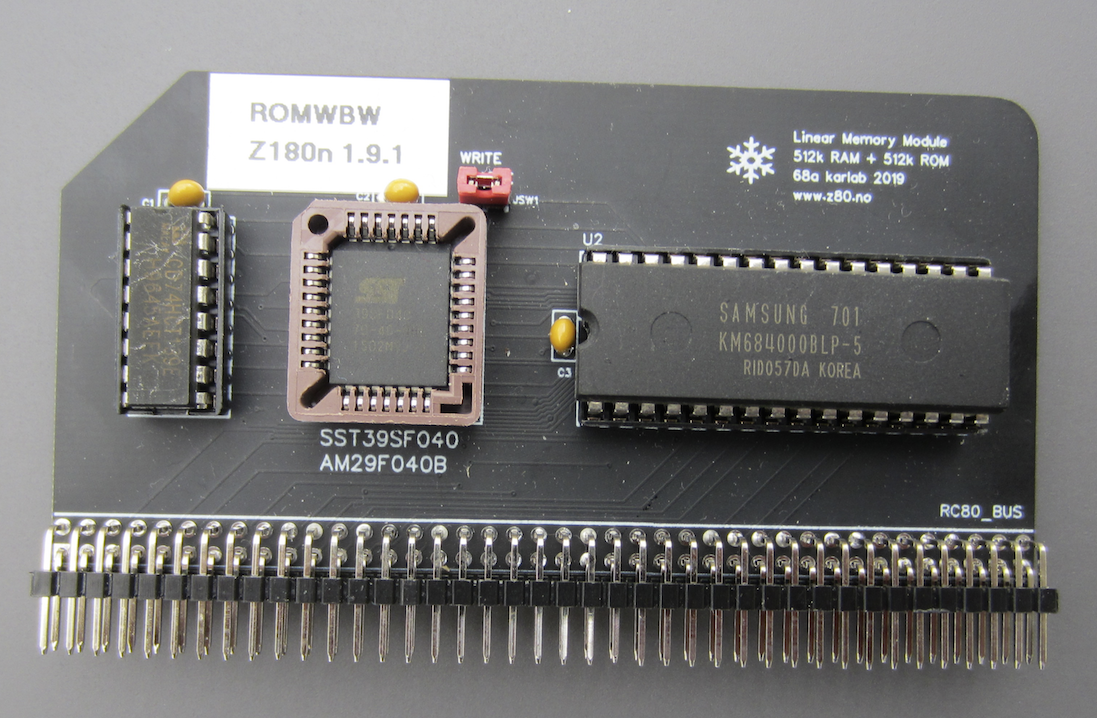

The ROM is programmed with ROMWBW 1.9.1 (ROMWBW copyright Wayne Warthen, with permission)
