In Progress

I tend to start projects before finishing others, so it may take time from start to finish of a project. I have decided to present some of the projects that have been in development for some time. I can not guarantee that any of these modules will reach a final working stage.

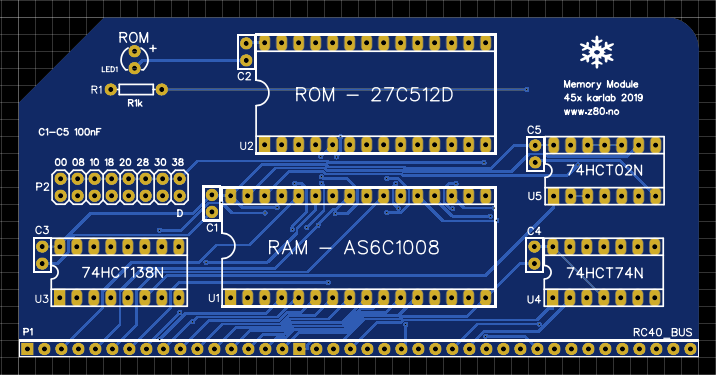

#45g Memory Module, with 64kb ROM and 128kb RAM module. I have spent a lot of time tweeking this module, but I am still not satisfied.

My Image

#62a Memory and Storage Module. This module is made to work together with #63 as a two module full CP/M kit.

My Image

Z180, The Black Series

Stacks Image 211

#25d Z180 Module. My #28b Z180 module works pretty well with the ROMWBW 512kRAM/ROM module. But I have started redesigning it to make the ports of the cpu more accessible.

Its coming together but still some tweaking before release.

Stacks Image 215
Stacks Image 213

The revised Z180 works very well, and I have also made two memory modules accompanying the Z180 module.

#65 based on SM Baker's design; 512k RAM and 512k ROM.

#69 linear memory module with 512k RAM and 512k ROM (based on Martin Feldtmann's design), have also added a 44pin IDE connector for attaching CF memory cards.

Stacks Image 219
Stacks Image 221
Stacks Image 209
Stacks Image 217
